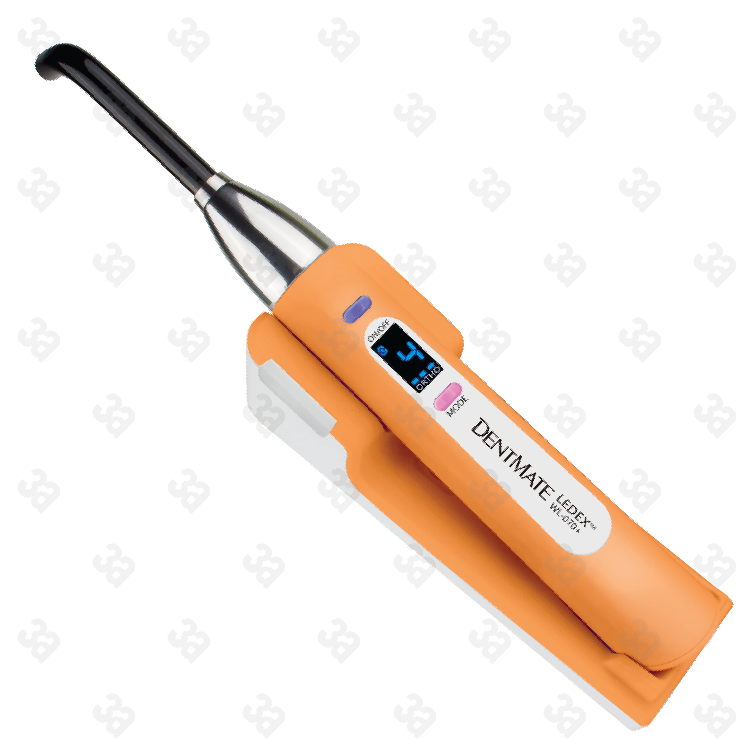

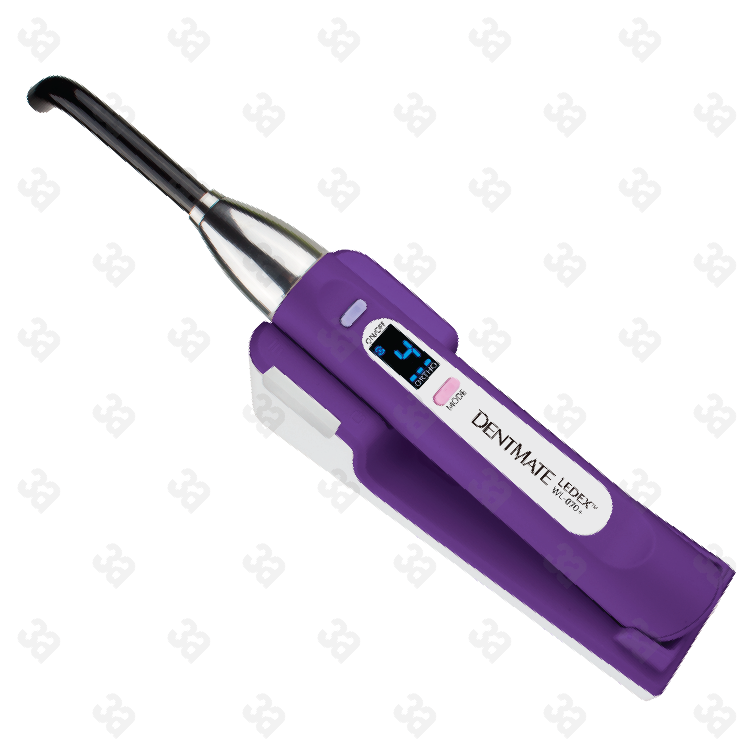

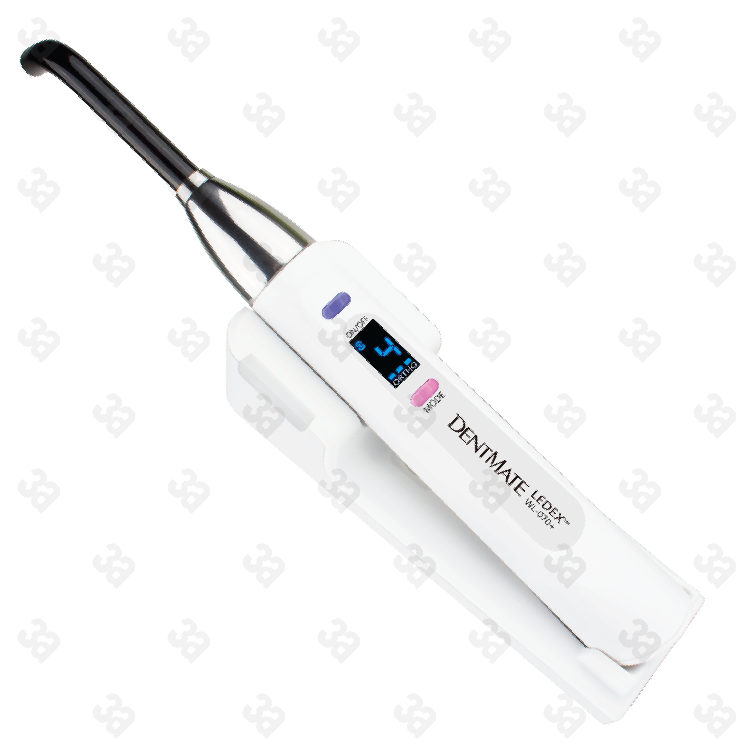

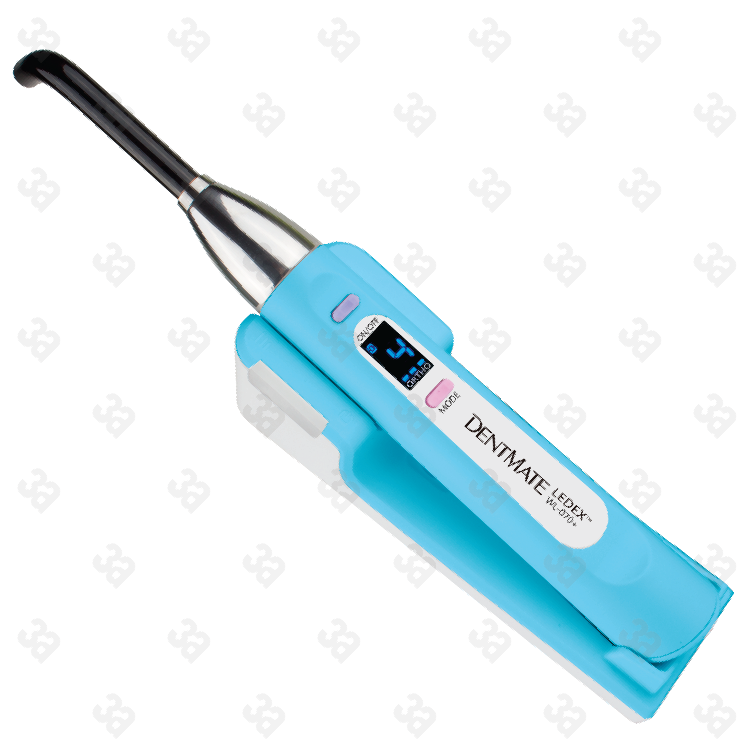

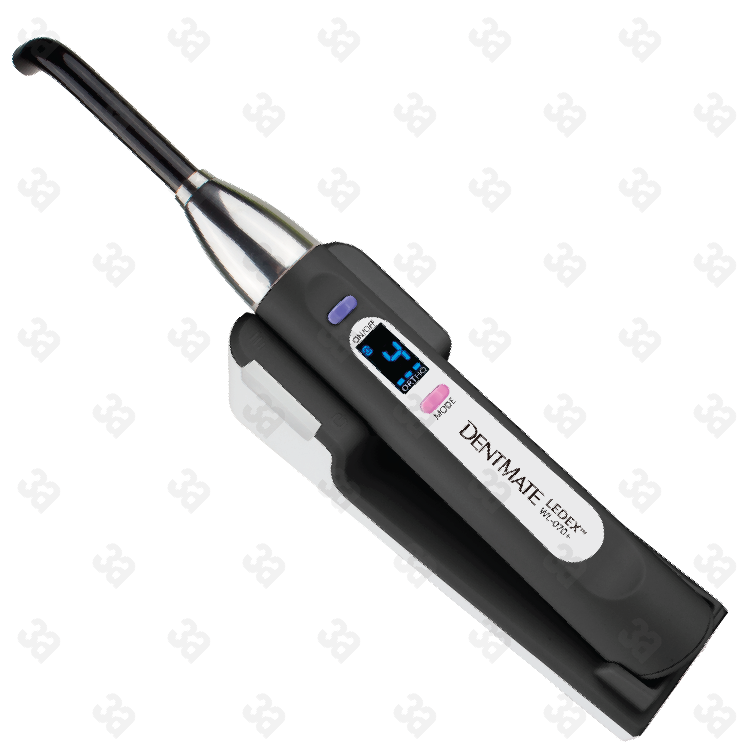

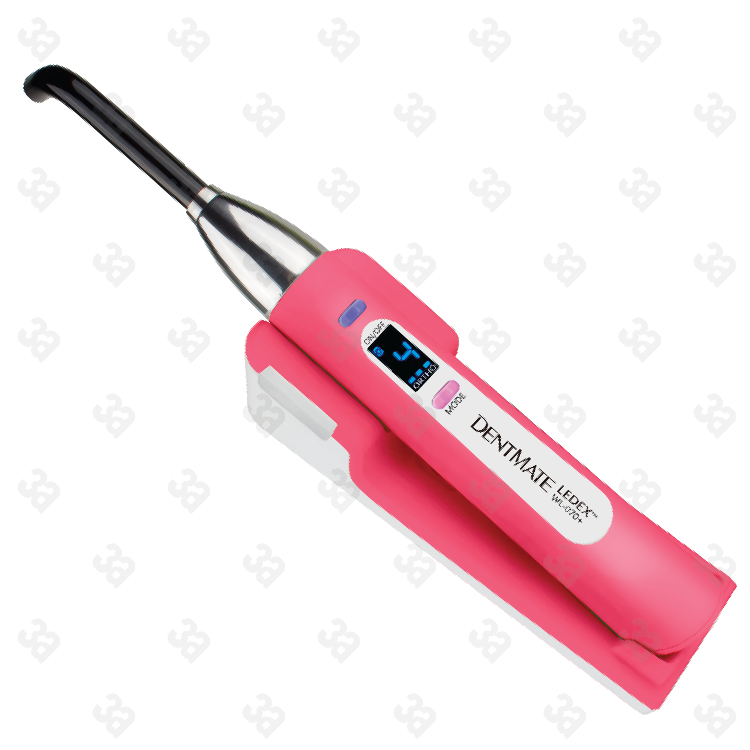

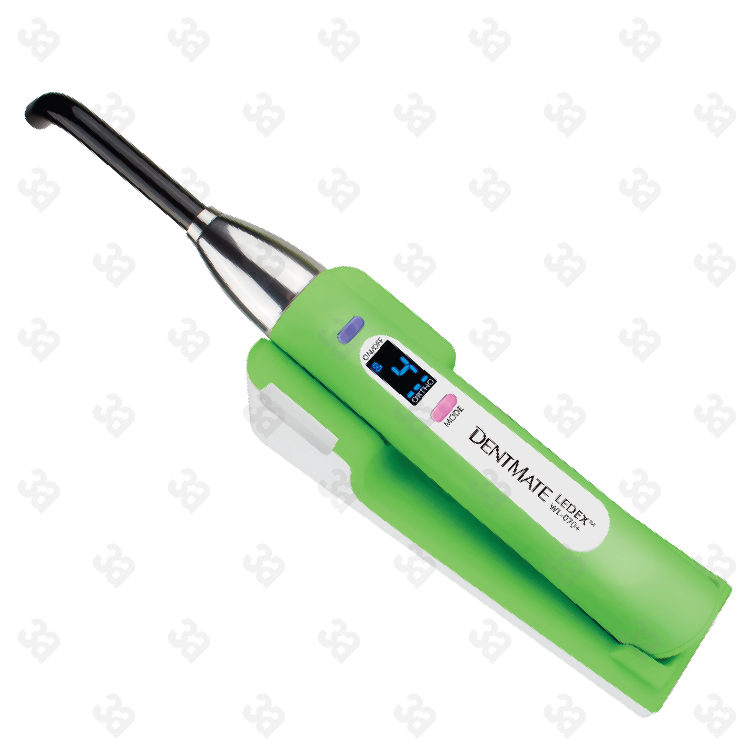

LEDEX™ WL-070+
LED dental curing light & wireless inductive charging stand
Cure fast in 4 seconds for one bracket
Having the high power 5W LED, each bracket can be cured in 4 seconds. One curing cycle for nine brackets.

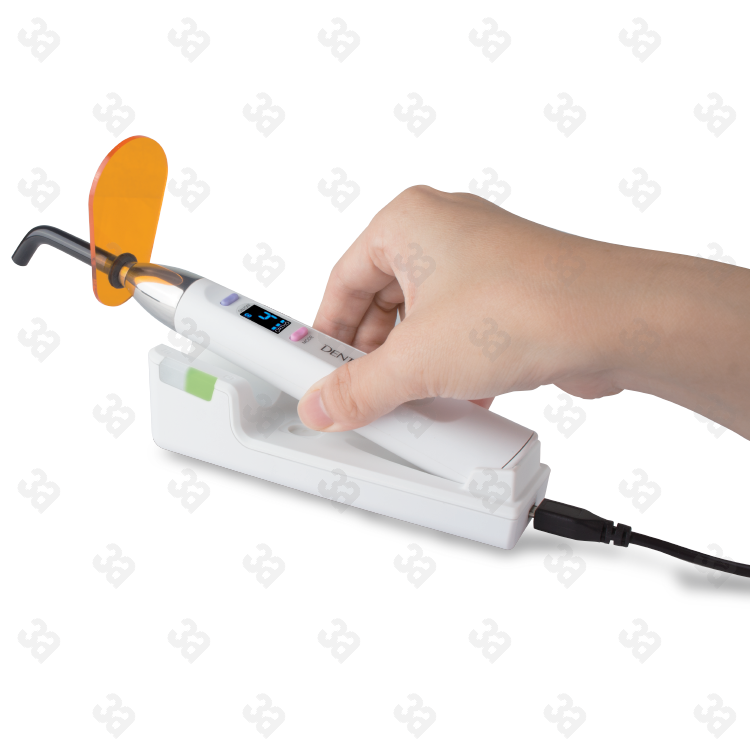

Wireless inductive charging stand
No need to plug in the cable; No pogo pin required.
Built-in intensity indicator
Easy to interpret due to the built-in intensity indicator.
- Orange light: ≤ 700 mW/cm²
- Blue light: > 700 mW/cm²
Simple operation
Including 3 ortho modes & 3 standard modes.
Never shutdown after continuous use
Having the smart heat management system, the device won’t overheat after continuous use.
Varieties of optical fiber light guide rod
There are 3, 5, and 8 mm black or transparent optical fiber light guide rod to be applied.

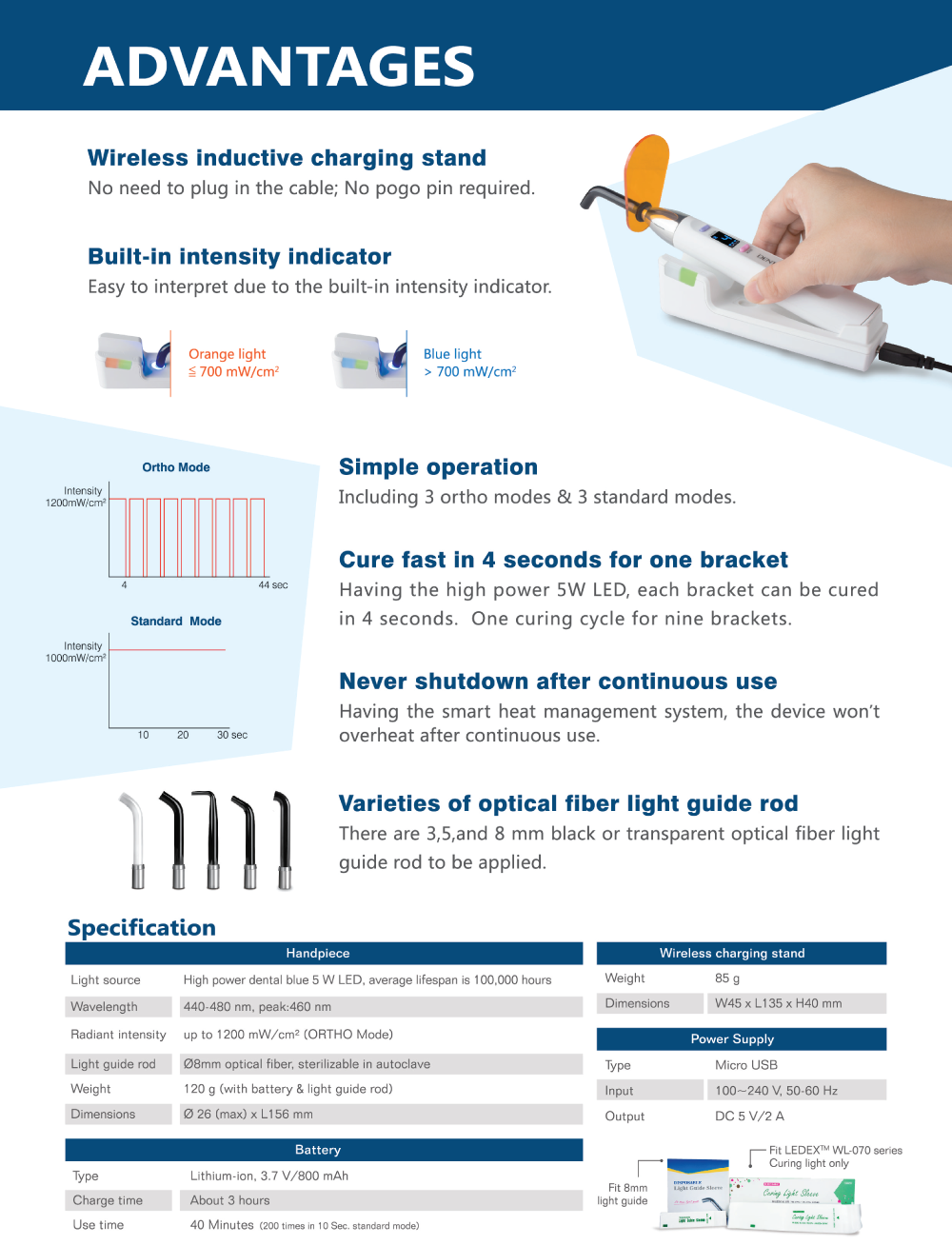

Specification
| Handpiece | |
|---|---|
| Light source | High power dental blue 5 W LED, average lifespan is 100,000 hours |
| Wavelength | 440–480 nm, peak: 460 nm |
| Radiant intensity | up to 1200 mW/cm² (ORTHO Mode) |
| Light guide rod | Ø8mm optical fiber, sterilizable in autoclave |
| Weight | 120 g (with battery & light guide rod) |
| Dimensions | Ø 26 (max) × L156 mm |
| Battery | |
|---|---|
| Type | Lithium-ion, 3.7 V / 800 mAh |
| Charge time | About 3 hours |
| Use time | 40 Minutes (200 times in 10 sec. standard mode) |
| Wireless charging stand | |
|---|---|
| Weight | 85 g |
| Dimensions | W45 × L135 × H40 mm |
| Power Supply | |
|---|---|
| Type | Micro USB |
| Input | 100–240 V, 50–60 Hz |
| Output | DC 5 V / 2 A |
