NIZAM Ringstanze
Remember how you extract CTG or tuberosity in previous cases?
The use of keratinized tissue grafts is an important element in oral surgery.
For example, free gingival graft, root coverage, papilla preservation, peri-implant soft tissue augmentation, and more.
However, KTG harvesting methods are often technique-sensitive and require a high level of surgical skill. They can also lead to complications such as bleeding, donor site pain, or necrosis.
The NIZAM Ring Punch
It’s a secret weapon to extract CTG from the palatal side.
The ring method is a simplified novel KTG harvesting technique in the maxillary tuberosity area.
A special KTG harvesting punch is fabricated to obtain ring-shaped KTG that has a uniform thickness. This type of graft can be used for peri-implant and periodontal soft tissue augmentation purposes, with successful clinical outcomes.

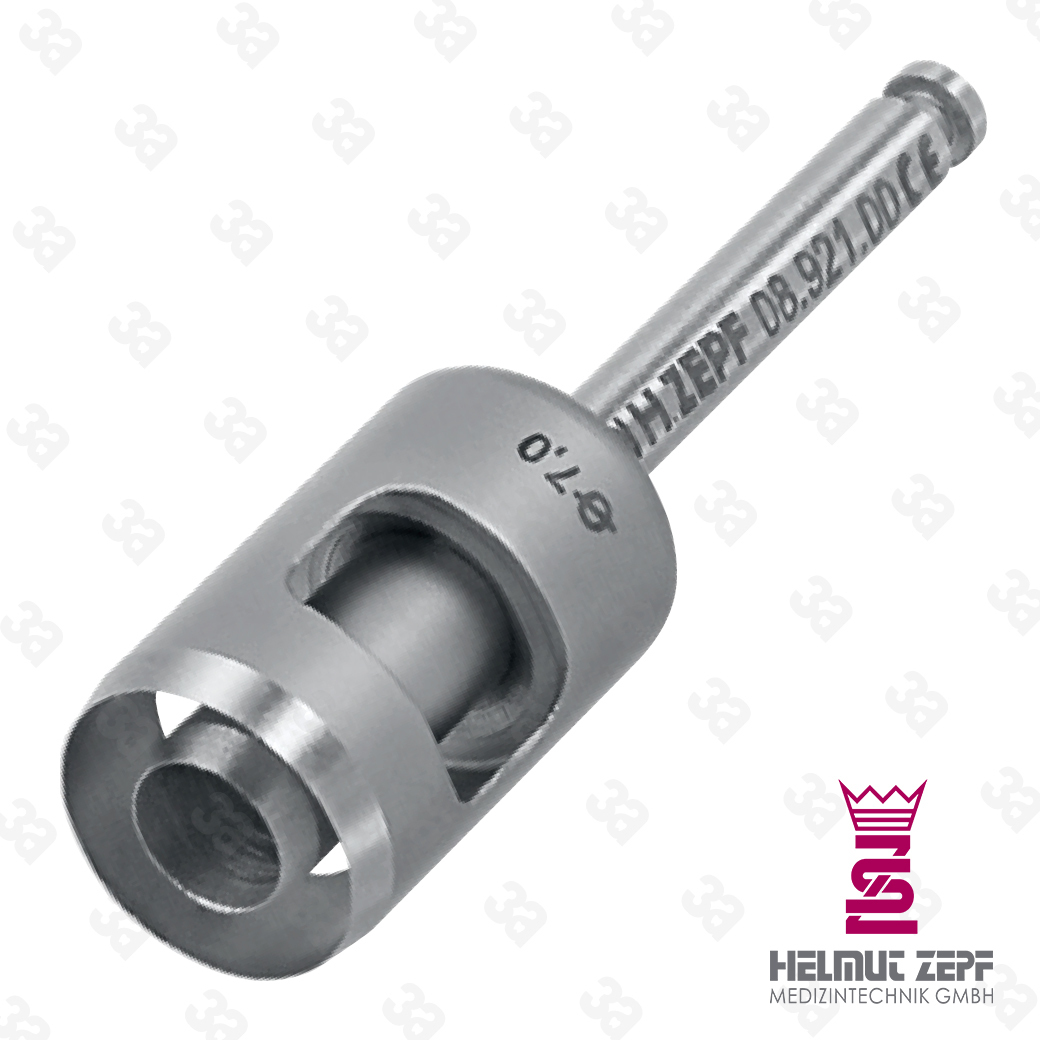

NIZAM Ringstanze – Product Details
- 5mm length – Helps create thick tissue grafts
- Ø4mm Inner / Ø7mm Outer – German-made sharp reusable structure
- The punch is composed of two sharp punches and a shank, which fits to a contra-angle
- Collect CTG easily after cutting
Instructions
- Hold vertically and adjust depth using tooth structure as reference
- Avoid splashing or perforating cortical bone
- Use on soft tissue only
Extract
- 2 parallel circular cuts will be created
- Extract tissue with periosteal elevator
Others
- Extracted tissue should be uniform in thickness
- Can be used on both tuberosity and palatal side
