Product Description
The Screw System offers a versatile anchorage solution using a combination of Titanium and Stainless Steel micro screws, designed for use outside the EU.
- 1.5 mm (Titanium): Lightweight and biocompatible, ideal for sensitive cases.
- 2.0 mm and 2.7 mm (Stainless Steel): Strong, durable, and suited for a variety of clinical needs. The 2.7 mm version features square holes for secure handling.
|
Description |
Size |
Material |
Length (mm) |
Width (mm) |
Height (mm) |
|
1.5 |
1.5×8mm |
Titanium |
11.5 |
3 |
3 |
|
2.0 |
2×12mm |
Stainless steel |
15.8 |
3 |
3 |
|
2.7 |
2×14mm w/ square holes |
Stainless steel |
17.8 |
3 |
3 |
Each screw is precisely engineered with standardized dimensions (3 mm width/height) and comes in varying lengths:
- 1.5×8 mm
- 2.0×12 mm
- 2.0×14 mm (square holes)
The system includes essential accessories such as:
- Blades (drivers)
- Ergonomic handle
- Storage box
This system is ideal for orthodontists seeking reliable and customizable anchorage options in treatment planning.
|

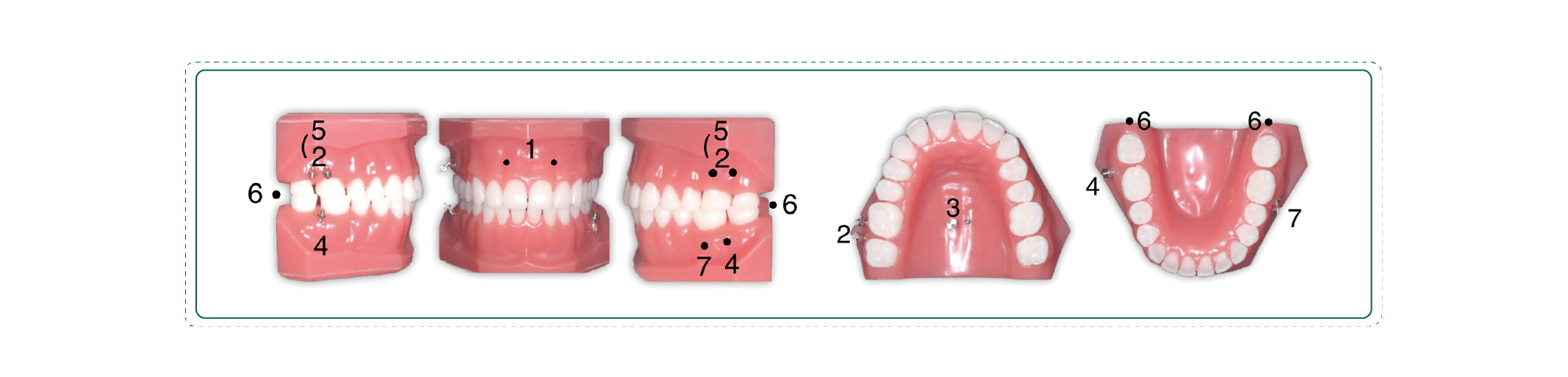

Type & Size |
Indication |
Location |
Frequency |
Position |
|
1.5 (1.5×8mm) |
Premaxilla Intrusion (Solving Gummy Smile) |
Between upper central & lateral incisors’ roots |
10% |
1 |
|
2.0 (2×12mm) 2.0 Ti (2×12mm) |
Maxillary Retraction |
IZC |
50% |
2 |
|
Palatal Impaction |
Palate |
1% |
3 |
|
|
Mandibular Retraction |
Buccal Shelf (BS) |
20% |
4 |
|
|
2.4 (2×12mm, with holes) 2.7 (2×14mm, with holes) |
Mandibular Retraction |
Buccal Shelf (BS) & 3D Lever Arm |
||
|
Upper Impacted Cuspid |
IZC (3D Lever Arm) |
4% |
5 |
|
|
Horizontally Impacted 3rd Molar |
Ramus (for thick soft tissue) |
4% |
6 |
|
|
Mandibular Protraction |
Buccal Shelf (BS) |
1% |
7 |
