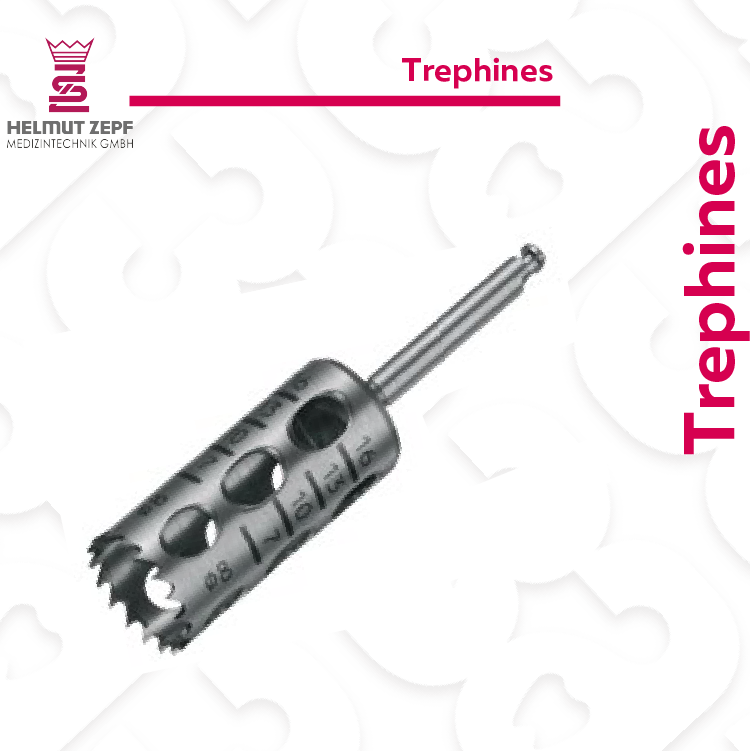

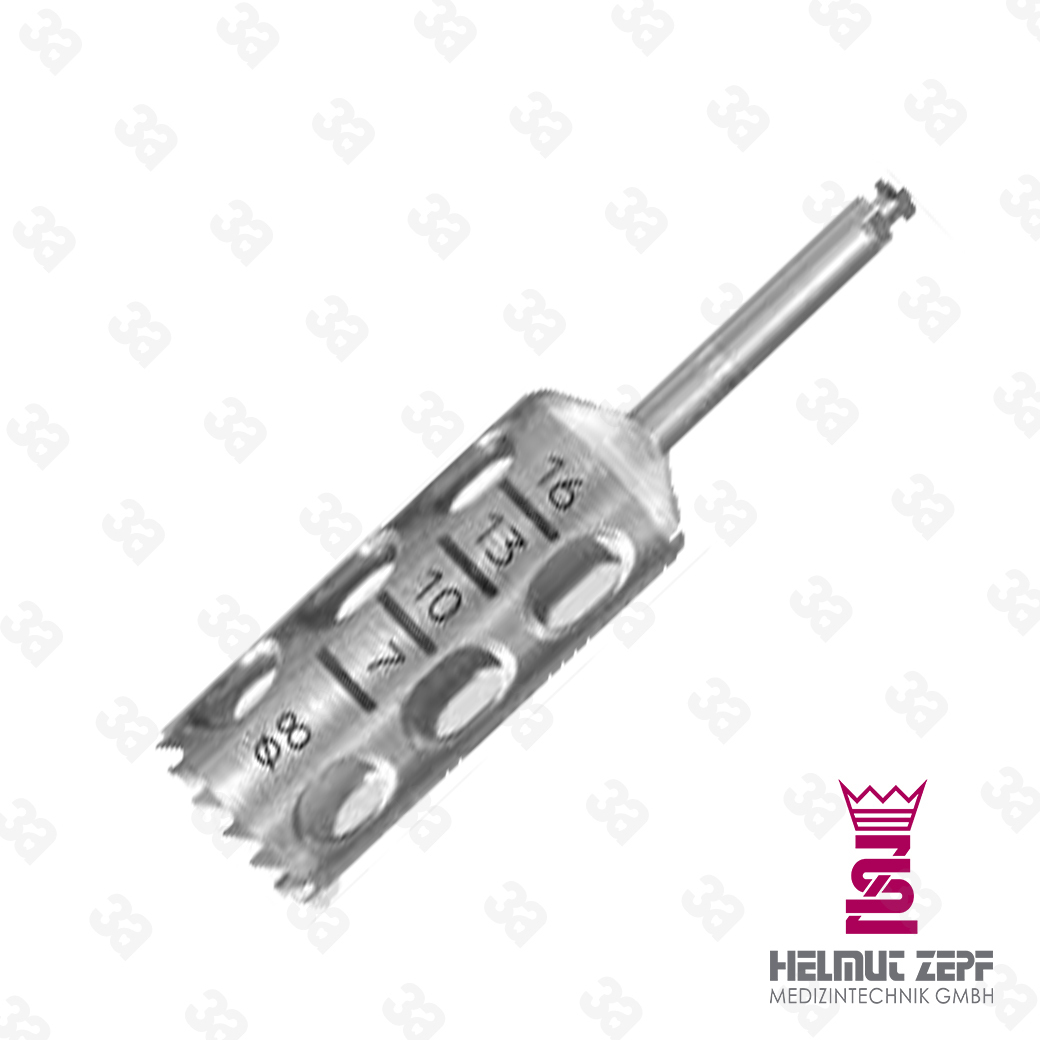

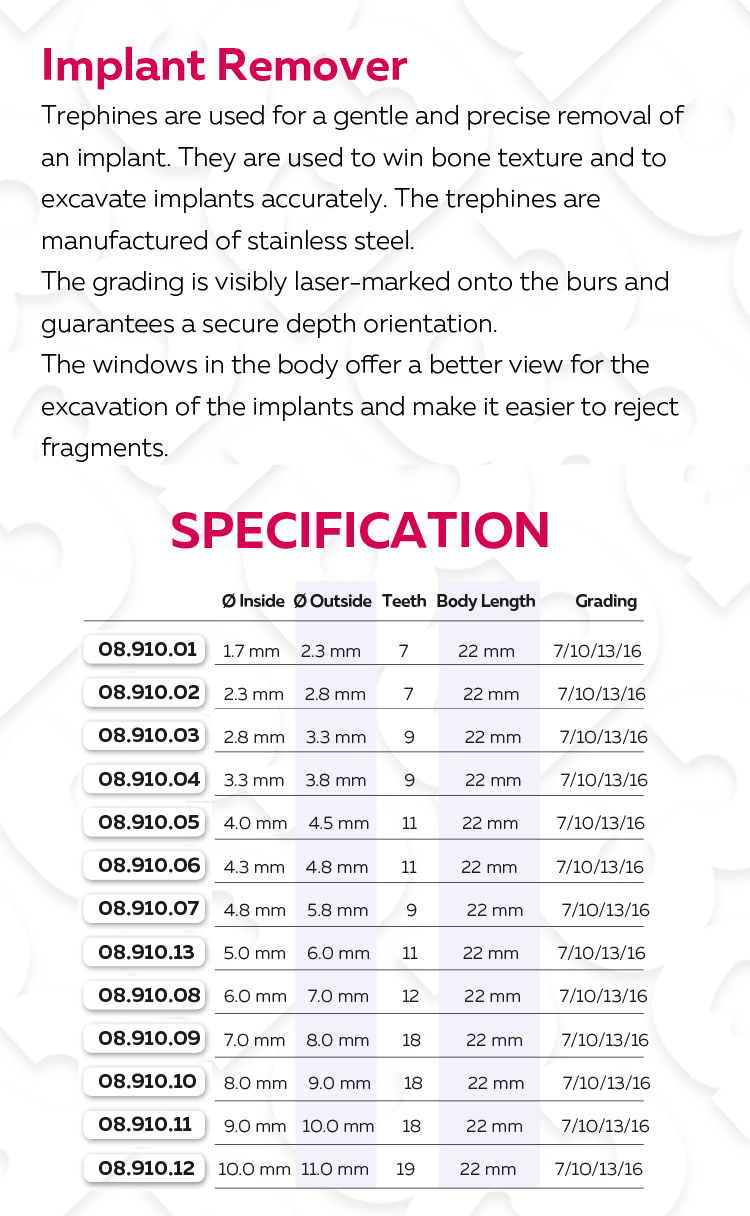

Implant Remover
Trephines are used for a gentle and precise removal of an implant. They are used to win bone texture and to excavate implants accurately. The trephines are manufactured of stainless steel. The grading is visibly laser-marked onto the burs and guarantees a secure depth orientation. The windows in the body offer a better view for the excavation of the implants and make it easier to reject fragments.

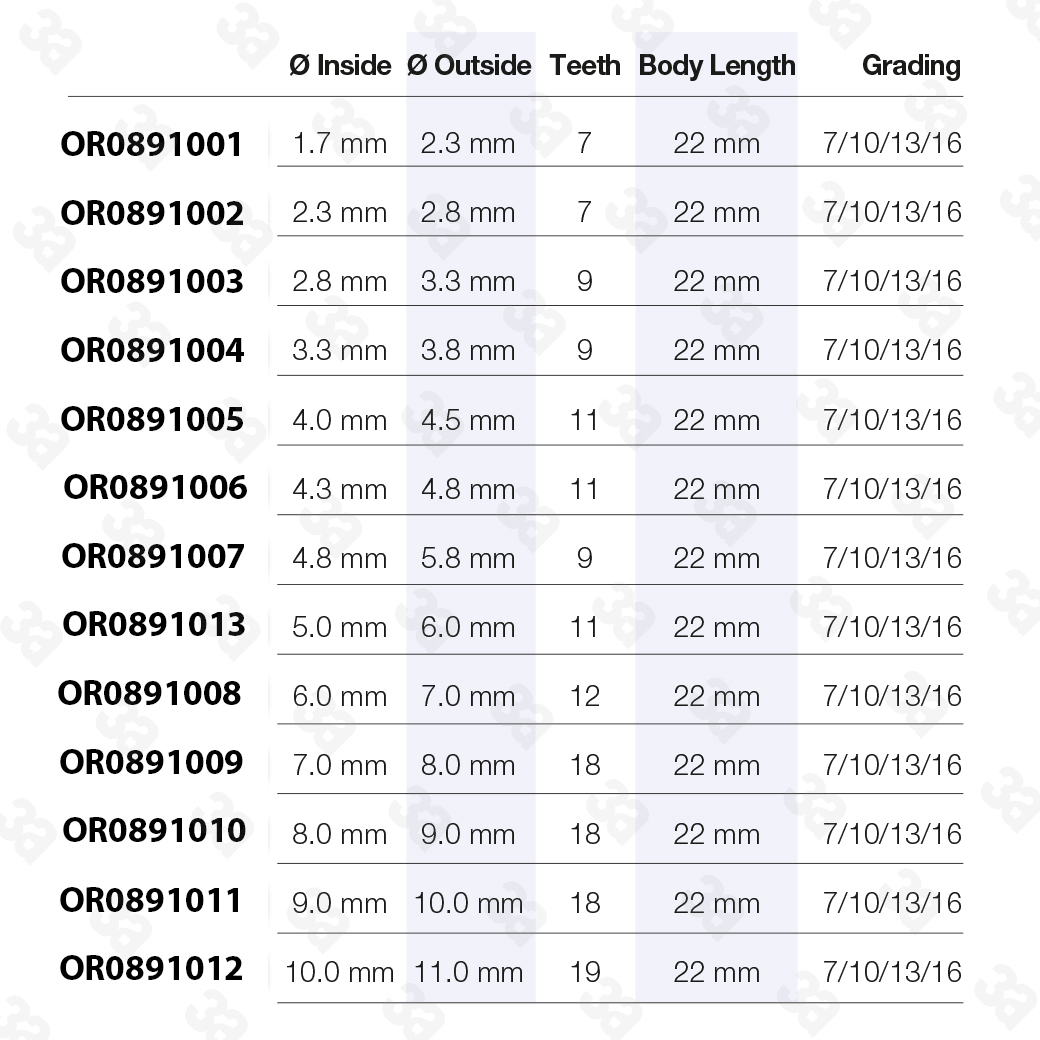

Specification
| Item | Ø Inside | Ø Outside | Teeth | Body Length | Grading |
|---|---|---|---|---|---|
| 08.910.01 | 1.7 mm | 2.3 mm | 7 | 22 mm | 7/10/13/16 |
| 08.910.02 | 2.3 mm | 2.8 mm | 7 | 22 mm | 7/10/13/16 |
| 08.910.03 | 2.8 mm | 3.3 mm | 9 | 22 mm | 7/10/13/16 |
| 08.910.04 | 3.3 mm | 3.8 mm | 9 | 22 mm | 7/10/13/16 |
| 08.910.05 | 4.0 mm | 4.5 mm | 11 | 22 mm | 7/10/13/16 |
| 08.910.06 | 4.3 mm | 4.8 mm | 11 | 22 mm | 7/10/13/16 |
| 08.910.07 | 4.8 mm | 5.8 mm | 9 | 22 mm | 7/10/13/16 |
| 08.910.13 | 5.0 mm | 6.0 mm | 11 | 22 mm | 7/10/13/16 |
| 08.910.08 | 6.0 mm | 7.0 mm | 12 | 22 mm | 7/10/13/16 |
| 08.910.09 | 7.0 mm | 8.0 mm | 18 | 22 mm | 7/10/13/16 |
| 08.910.10 | 8.0 mm | 9.0 mm | 18 | 22 mm | 7/10/13/16 |
| 08.910.11 | 9.0 mm | 10.0 mm | 18 | 22 mm | 7/10/13/16 |
| 08.910.12 | 10.0 mm | 11.0 mm | 19 | 22 mm | 7/10/13/16 |
